Product Documentation

Document	Pages	Notes
Datasheet	2

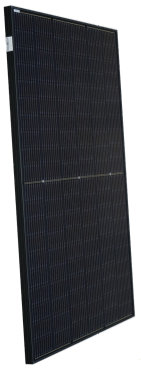

Product

Parameter	Value	Description
Shape	Rectangular
Height	1756 mm	The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation.
Width	1039 mm	The horizontal distance between the left and right surfaces of an item that is placed in its conventional orientation.
Depth	35 mm	The horizontal distance between the front and rear surfaces of an item that is placed in its conventional orientation.
Area	1.824484 m²
Weight	20.3 kg	The weight of the item.
Wind Load	3800 Pa max
Snow Load	5400 Pa max

Cell

Parameter	Value	Description
Count	120
Type	Mono Si	The cells are made of Monocrystalline Silicon.

Power

Parameter	Value	Description
Rated Power at STC	365 W	Output Power at Maximum Power Point under Standard Test Conditions
Rated Power at NMOT	274.3 W	Output Power at Maximum Power Point at Nominal Module Operating Temperature
Power Density at STC	200.057 W/m²	Power Density under Standard Test Conditions
Efficiency at STC	20 %	Module Efficiency under Standard Test Conditions
Degradation Rate	0.55 %/yr	The rate at which the solar panel's power output decreases over time as the panel ages.

Voltage

Parameter	Value	Description
Rated Voltage at STC	34.1 V	Output Voltage at Maximum Power Point under Standard Test Conditions
Rated Voltage at NMOT	31.8 V	Output Voltage at Maximum Power Point at Nominal Module Operating Temperature
Open Circuit Voltage at STC	40.7 V max	Open Circuit Voltage under Standard Test Conditions
Open Circuit Voltage at NMOT	38.5 V max	Open Circuit Voltage at Nominal Module Operating Temperature
System Voltage	1000 V max

Current

Parameter	Value	Description
Rated Current at STC	10.71 A	Output Current at Maximum Power Point under Standard Test Conditions
Rated Current at NMOT	8.62 A	Output Current at Maximum Power Point at Nominal Module Operating Temperature
Short Circuit Current at STC	11.42 A max	Short Circuit Voltage under Standard Test Conditions
Short Circuit Current at NMOT	9.1 A max	Short Circuit Current at Nominal Module Operating Temperature
System Fuse Rating	20 A max

Temperature

Parameter	Value	Description
Operating Temperature	-40 to 85 °C	The range of temperatures in which the product is designed to be operated.
Temp Coeff of Power	-0.36 %/°C	Temperature Coefficient of Power
Temp Coeff of Voltage	-0.304 %/°C	Temperature Coefficient of Open-Circuit Voltage
Temp Coeff of Current	0.05 %/°C	Temperature Coefficient of Short-Circuit Current

Junction Box

Parameter	Value	Description
Solid Ingress Protection Level	IP6x	The product is dust-tight.
Liquid Ingress Protection Level	IPx8	The product is protected against the effects of continuous immersion in water.

Positive Lead

Parameter	Value	Description
Wire Diameter	12 AWG (4 mm²)
Wire Length	160 mm
Connector Type	MC4

Negative Lead

Parameter	Value	Description
Wire Diameter	12 AWG (4 mm²)
Wire Length	350 mm
Connector Type	MC4
