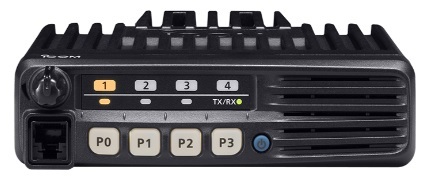

Icom IC-F6011 UHF Transceiver

Product Documentation

Document Pages Notes
Icom IC-F5011/F6011 Instructions
Icom IC-F5011/F6011 Product Brochure

Product

Parameter Value Description
Form Factor Fixed-Mount The radio is designed to be permanently attached to a surface using fasteners.
Type Transceiver The radio can receive and transmit signals.
Width 150 mm The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height 40 mm The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth 167.5 mm The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight 1.1 kg The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature -30 to 60 °C The range of temperatures in which the product is designed to be operated.
Programmable Yes The radio's settings can be edited using a computer or cell phone.

Tuning System

Parameter Value Description
Nuisance Delete Yes A busy channel can be temporarily removed from the scanning list.

Signaling System

Parameter Value Description
Signaling Methods 2-Tone Two-tone sequential signaling
5-Tone 5/6/7-tone sequential signaling
CTCSS Continuous Tone-Codes Squelch System
DCS Digital-Coded Squelch
MDC-1200 Motorola Data Communications

Audio System

Parameter Value Description
Output Power 4 W max

Receiver

Parameter Value Description
Land Mobile Band UHF Land mobile UHF band (450 - 470 MHz)
Sensitivity Threshold 0.25 µV max The magnitude of the smallest RF signal that a receiver can detect.
Adjacent Channel Selectivity 65 dB min The ability of a receiver to discriminate between a desired signal and an undesired signal in an adjacent channel.
Spurious Rejection 70 dB min The ratio of a receiver's response to a signal at a desired frequency and its response to signals at other frequencies that cause a response.
Intermodulation Rejection 75 dB min The ability of a receiver to reject intermodulation products produced by the mixing of two or more signals at the input to the receiver.

Transmitter

Parameter Value Description
Land Mobile Band UHF Land mobile UHF band (450 - 470 MHz)
Frequency Drift 2.5 ppm The amount that a transmitter's frequency varies from its nominal value.
Output Power 45 W max The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
Spurious Emissions -70 dB max Emission on a frequency or frequencies which are outside the necessary bandwidth.
FM Hum and Noise -40 dB max The frequency modulation present on an unmodulated carrier.
Audio Distortion 3 % max
Timeout Timer Yes Indicates that a radio is capable of limiting the length of each transmission.

Channel Selector

Parameter Value Description
Location Front The channel selector is located on the front panel of the radio.
Type Pushbutton The setting can be adjusted by pressing a button to cycle through two or more options.

Volume Control

Parameter Value Description
Location Front The volume control is located on the front panel of the radio.
Type Rotary Knob The setting can be adjusted by rotating a round knob.

Display

Parameter Value Description
Type Indicators Separate, individually-labeled lamps or other indicators.

Internal Speaker

Parameter Value Description
Location Front The internal speaker is located behind the front panel of the radio.

Microphone Port

Parameter Value Description
Connector Type RJ45-Female 8-Position RJ45 Female
Impedance 600 Ω

Speaker Port

Parameter Value Description
Connector Type 3.5mm Mono Mini 2-Position Miniature Phone Jack
Impedance 4 Ω The effective resistance of the load at audio frequencies.

Antenna Port

Parameter Value Description
Connector Type UHF-Female UHF Female (SO-239)
Impedance 50 Ω

Power Supply Port

Parameter Conditions Value Description
Audio System Transmitter
Output Power Output Power
Supply Voltage 13.6 V
Current Draw 0 0 250 mA max The maximum amount of current drawn from the power source by the device.
4 0 700 mA max
45 11 A max
