Product Documentation
Document | Pages | Notes |
---|---|---|
Icom IC-F5011/F6011 Instructions | ||
Icom IC-F5011/F6011 Product Brochure |

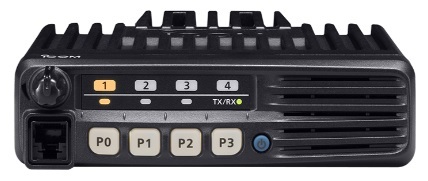

Product
Parameter | Value | Description |
---|---|---|
Form Factor | Fixed-Mount | The radio is designed to be permanently attached to a surface using fasteners. |
Type | Transceiver | The radio can receive and transmit signals. |
Width | 150 mm | The distance between the left and right surfaces of the main body of the radio, excluding protrusions. |
Height | 40 mm | The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions. |
Depth | 167.5 mm | The distance between the front and rear surfaces of the main body of the radio, excluding protrusions. |
Weight | 1.1 kg | The mass of the main body of the radio, including the removable battery or removable front panel. |
Operating Temperature | -30 to 60 °C | The range of temperatures in which the product is designed to be operated. |
Programmable | Yes | The radio's settings can be edited using a computer or cell phone. |
Tuning System
Parameter | Value | Description |
---|---|---|
Channel Capacity | 8 max | The number of memory channels that can be programmed into the radio. |
Scan Types | Channel | The radio's tuning system can scan some or all of the channels programmed into its memory. |
Priority | The radio's tuning system can check prioritized channels more frequently while performing a channel scan. | |
Nuisance Delete | Yes | A busy channel can be temporarily removed from the scanning list. |
Repeater Capable | Yes | Memory channels can have different transmit and receive frequencies, facilitating the use of radio repeaters. |
Talkaround | Yes | Sets the transmit frequency equal to the receive frequency when using a repeater channel. |
Signaling System
Parameter | Value | Description |
---|---|---|
Signaling Methods | 2-Tone | Two-tone sequential signaling |
5-Tone | 5/6/7-tone sequential signaling | |
CTCSS | Continuous Tone-Codes Squelch System | |
DCS | Digital-Coded Squelch | |
MDC-1200 | Motorola Data Communications | |
Remote Actions | Stun | Temporarily disables the receiving radio until it is revived. |
Kill | Permanently disables the receiving radio until a technician reprograms it. | |
Revive | Restores a stunned radio to normal functionality. | |
Answer Back | Configures the receiving radio to automatically respond to paging calls ("transpond"). | |
Auto TX | Causes the receiving radio to transmit for a preprogrammed period of time. | |
Scan | Causes the receiving radio to begin scanning. | |
Audio Output | Causes the received paging tones to be audible. | |
DTMF Autodial | Yes | The radio is capable of storing one or more DTMF digit sequences and playing them back when needed. |
PTT ID | Yes | The radio supports Automatic Number Identification |
Emergency Call | Yes | Sends out a distress call to other radios. May also place the radio in hands-free mode to so the user can describe his situation without needing to continually press the PTT button. |
Audio System
Parameter | Value | Description |
---|---|---|
Output Power | 4 W max |
Receiver
Parameter | Value | Description |
---|---|---|
Land Mobile Band | VHF | Land mobile VHF high band (150 - 174 MHz) |
Sensitivity Threshold | 0.25 µV max | The magnitude of the smallest RF signal that a receiver can detect. |
Adjacent Channel Selectivity | 65 dB min | The ability of a receiver to discriminate between a desired signal and an undesired signal in an adjacent channel. |
Spurious Rejection | 70 dB min | The ratio of a receiver's response to a signal at a desired frequency and its response to signals at other frequencies that cause a response. |
Intermodulation Rejection | 75 dB min | The ability of a receiver to reject intermodulation products produced by the mixing of two or more signals at the input to the receiver. |
Transmitter
Parameter | Value | Description |
---|---|---|
Land Mobile Band | VHF | Land mobile VHF high band (150 - 174 MHz) |
Frequency Drift | 2.5 ppm | The amount that a transmitter's frequency varies from its nominal value. |
Output Power | 50 W max | The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation. |
Spurious Emissions | -70 dB max | Emission on a frequency or frequencies which are outside the necessary bandwidth. |
FM Hum and Noise | -40 dB max | The frequency modulation present on an unmodulated carrier. |
Audio Distortion | 3 % max | |
Emission Types | 11K0F3E | 11 kHz occupied bandwidth, FM analog voice |
16K0F3E | 16 kHz occupied bandwidth, FM analog voice | |
Timeout Timer | Yes | Indicates that a radio is capable of limiting the length of each transmission. |
Channel Selector
Parameter | Value | Description |
---|---|---|
Location | Front | The channel selector is located on the front panel of the radio. |
Type | Pushbutton | The setting can be adjusted by pressing a button to cycle through two or more options. |
Volume Control
Parameter | Value | Description |
---|---|---|
Location | Front | The volume control is located on the front panel of the radio. |
Type | Rotary Knob | The setting can be adjusted by rotating a round knob. |
Display
Parameter | Value | Description |
---|---|---|
Type | Indicators | Separate, individually-labeled lamps or other indicators. |
Internal Speaker
Parameter | Value | Description |
---|---|---|
Location | Front | The internal speaker is located behind the front panel of the radio. |
Microphone Port
Parameter | Value | Description |
---|---|---|
Connector Type | RJ45-Female | 8-Position RJ45 Female |
Impedance | 600 Ω |
Speaker Port
Parameter | Value | Description |
---|---|---|
Connector Type | 3.5mm Mono Mini | 2-Position Miniature Phone Jack |
Impedance | 4 Ω | The effective resistance of the load at audio frequencies. |
Data Port (OPC-1939)
Parameter | Value | Description |
---|---|---|
Connector Type | DB15-Female |
Data Port (OPC-2078)
Parameter | Value | Description |
---|---|---|
Connector Type | DB25-Female |
Antenna Port
Parameter | Value | Description |
---|---|---|
Connector Type | UHF-Female | UHF Female (SO-239) |
Impedance | 50 Ω |
Power Supply Port
Parameter | Conditions | Value | Description | |
---|---|---|---|---|
Audio System | Transmitter | |||
Output Power | Output Power | |||
Supply Voltage | 13.6 V | |||
Current Draw | 0 | 0 | 250 mA max | The maximum amount of current drawn from the power source by the device. |
4 | 0 | 700 mA max | ||
50 | 10 A max |
