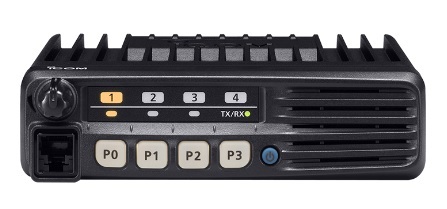

Icom IC-F5012 VHF Mobile Transceiver

Product Documentation

Document Pages Notes
Icom IC-F5012/F6012 Instructions
Icom IC-F5012/F6012 Product Brochure

Product

Parameter Value Description
Form Factor Fixed-Mount The radio is designed to be permanently attached to a surface using fasteners.
Type Transceiver The radio can receive and transmit signals.
Width 150 mm The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height 40 mm The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth 117.5 mm The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight 0.8 kg The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature -25 to 55 °C The range of temperatures in which the product is designed to be operated.

Tuning System

Parameter Value Description
Channel Capacity 8 max The number of memory channels that can be programmed into the radio.
Scan Types Channel The radio's tuning system can scan some or all of the channels programmed into its memory.
Priority The radio's tuning system can check prioritized channels more frequently while performing a channel scan.

Signaling System

Parameter Value Description
Signaling Methods 2-Tone Two-tone sequential signaling
5-Tone 5/6/7-tone sequential signaling
CTCSS Continuous Tone-Codes Squelch System
DCS Digital-Coded Squelch
MDC-1200 Motorola Data Communications
Remote Actions Stun Temporarily disables the receiving radio until it is revived.
Kill Permanently disables the receiving radio until a technician reprograms it.
Revive Restores a stunned radio to normal functionality.
Answer Back Configures the receiving radio to automatically respond to paging calls ("transpond").
Auto TX Causes the receiving radio to transmit for a preprogrammed period of time.
Scan Causes the receiving radio to begin scanning.
Audio Output Causes the received paging tones to be audible.
PTT ID Yes The radio supports Automatic Number Identification
Selective Call Yes Enables one radio user to initiate a conversation with another specific user.
Group Call Yes Enables a radio user to initiate a conversation with a predetermined group of radio users. All users can hear one another during the conversation.

Audio System

Parameter Value Description
Output Power 4 W max

Receiver

Parameter Conditions Value Description
Tuning System
Channel Bandwidth
Land Mobile Band VHF Land mobile VHF high band (150 - 174 MHz)
Sensitivity Threshold -4 dBµV max The magnitude of the smallest RF signal that a receiver can detect.
Adjacent Channel Selectivity 12.5 kHz 65 dB min The ability of a receiver to discriminate between a desired signal and an undesired signal in an adjacent channel.
20 kHz 75 dB min
25 kHz 75 dB min
Spurious Rejection 70 dB min The ratio of a receiver's response to a signal at a desired frequency and its response to signals at other frequencies that cause a response.
Intermodulation Rejection 67 dB min The ability of a receiver to reject intermodulation products produced by the mixing of two or more signals at the input to the receiver.
FM Hum and Noise 12.5 kHz -50 dB max The frequency modulation present on an unmodulated carrier.
20 kHz -53 dB max
25 kHz -55 dB max

Transmitter

Parameter Value Description
Land Mobile Band VHF Land mobile VHF high band (150 - 174 MHz)
Frequency Drift 2.5 ppm The amount that a transmitter's frequency varies from its nominal value.
Output Power 25 W max The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
Audio Distortion 3 % max
Emission Types 8K50F3E 8.5 kHz occupied bandwidth, FM analog voice
11K0F3E 11 kHz occupied bandwidth, FM analog voice
16K0F3E 16 kHz occupied bandwidth, FM analog voice

Microphone Port

Parameter Value Description
Connector Type RJ45-Female 8-Position RJ45 Female
Impedance 600 Ω

Speaker Port

Parameter Value Description
Connector Type 3.5mm Mono Mini 2-Position Miniature Phone Jack
Impedance 4 Ω The effective resistance of the load at audio frequencies.

Power Supply Port

Parameter Conditions Value Description
Audio System Transmitter
Output Power Output Power
Supply Voltage 13.2 V
Current Draw 0 0 250 mA max The maximum amount of current drawn from the power source by the device.
4 0 W 700 mA max
25 5 A max
