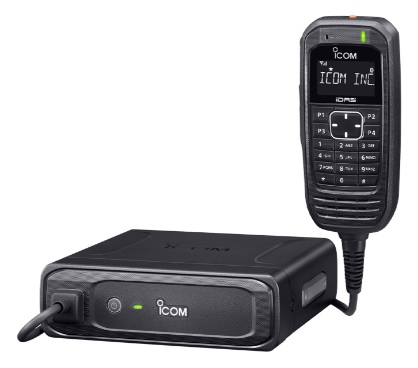

Product

Parameter	Value	Description
Form Factor	Fixed-Mount	The radio is designed to be permanently attached to a surface using fasteners.
Type	Transceiver	The radio can receive and transmit signals.
Width	150 mm	The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height	45 mm	The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth	161.8 mm	The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight	1.2 kg	The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature	-30 to 60 °C	The range of temperatures in which the product is designed to be operated.

Tuning System

Parameter	Value	Description
Channel Capacity	128 max	The number of memory channels that can be programmed into the radio.

Transmitter

Parameter	Value	Description
Frequency Drift	1 ppm	The amount that a transmitter's frequency varies from its nominal value.
Output Power	50 W max	The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
Emission Types	4K00F1D	4 kHz occupied bandwidth, FM digital data
	4K00F1E	4 kHz occupied bandwidth, FM digital voice
	11K0F3E	11 kHz occupied bandwidth, FM analog voice
	16K0F3E	16 kHz occupied bandwidth, FM analog voice

Antenna Port

Parameter	Value	Description
Connector Type	UHF-Female	UHF Female (SO-239)
Impedance	50 Ω

Power Supply Port

Parameter	Value	Description
Supply Voltage	13.6 V
